Description

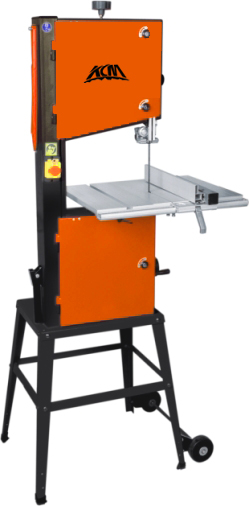

ADJ315G

Standard equipment: induction motor; Steel frame; Aluminum wheels with rubber coated; Rip fence

Features: 2 speed; Working table tilting  0°-45°

Options: 1.Cast iron or aluminum work table 2.Sheet steel or cast aluminum miter gauge 3.Push stick 4. Blade tension indication 5.Quick blade tension system  6. Micro switch   7. Stand

Max.cutting height(mm)    160

Motor(w)                               750

Blade speed 50Hz(m/min)   370/800

Blade speed 60Hz(m/min)   440/960

Throat(mm)                          305

Blade length(mm)                2240

Table size(mm)                    480x400/548x400

N.W./G.W.(kg)                  75/78

Packing size(mm)                1125x360x490

Qty/20’’ container                120
